SRNA 650 / TT

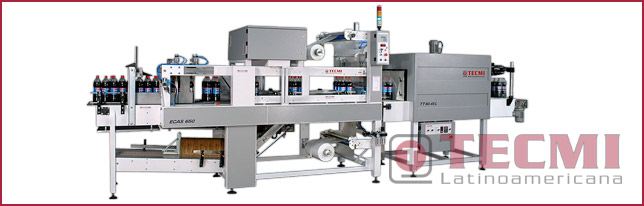

ECAS 650 shrink film wrapper is an automatic machine designed for medium speeds (up to 15 pack/minute) and to supplement production lines of bottles, boxes, cases, jars, spray cans, etc.

The equipment’s main advantages are easy operation, ample versatility and reduced format change times.

ECAS 650 / TT
TECHNICAL FEATURES

Standard Basic Equipment
  • Input conveyor belt made of low friction coefficient material, in one or multiple functions.
  • Text display with programming and pack counter functions.
  • Programmable Logic Controller (PLC).
  • Hot chamber welding with digital temperature control.
  • Welding bar movement pneumatically operated with safety device.
  • Pneumatically operated pack pusher programmable in the number of partial push movements.
  • Upper and lower motor-driven polyethylene reel unwinder.
Technical Data
  • Production output: up to 15 pack/minute.
  • Installed power: 2.5Kw.
  • Compressed air pressure: 6 bar.
  • Compressed air consumption: 18 l/cycle.
  • Approximate net weight: 930 kg.
  • Maximum reel diameter: 300 mm.
  • Maximum reel width: 600 mm.
  • Polyethylene thickness: 60 to 150 u.
Optionals
  • Special conveyor belts for product input.
  • Special feeding devices.
  • Product stacker with programmable number of floors.
  • Cardboard tray dispenser.
  • Stainless steel version.
*Specifications subject to variation without prior notice.

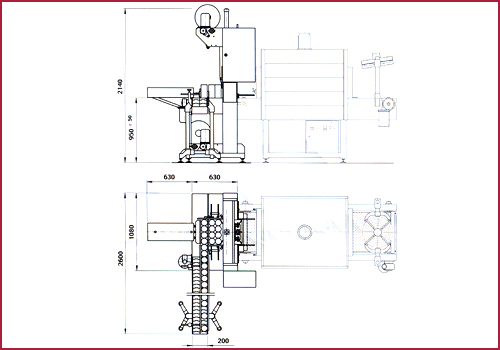

SRNA 650 / TT LAYOUT

SRNA 650 / TT LAYOUT
